BMS-A56V, HV-Digital, High Torque, Titanium Gears
Wing Servo, RC Sailplane-F3J, F3B, F3F, F5J, Jets and other wing applications
|
Electrical Specification (Function Of The Performance)
|
|
| Torque At 6.0V | 7.0 kg-cm / 97 oz-in |
| Torque At 7.4V ★ | 8.6 kg-cm / 119 oz-in |
| Speed At 6.0V | 0.15 sec / 60° @ No Load |
| Speed At 7.4V ★ | 0.12 sec / 60° @ No Load |
|
Apply Environmental Condition
|
|
| Operating Voltage Range | 6V ~ 8.5V ( 5~6 Cell Ni-MH or 2 Cell Li-Poly ) |
|
Control Specification
|
|
| Control System | Digital Controller |
| Dead Bend Width | 0.001ms (1us) |
|
Mechanical Specification
|
|
| Ball Bearing | Dual |
| Type Gears | Titanium Alloy Gears |
| Horn / Gear Spline | 25 Teeth (Same as Futaba) |
|
Outline Drawing
|
|
| Dimension (mm) | 30 x 10 x 34.5 mm / 1.18 x 0.39 x 1.36 in |
| Weight (gram) | 28.4 ± 1 grams / 1.0 oz |
|

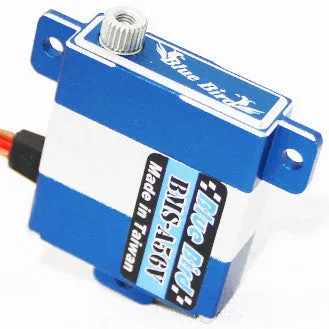

Product Picture / |
BMS-A56V
|
